TFS Aircraft Hangar Curved Tent

Details:

The TFS Roof Tent is one of the latest products of the Tent Series. We designed it. An increasing number of customers prefer this type of tent due to its unique and elegant cardioid shape.

There are 3 types in the Curved tent series. These include QYT (span from 15m to 25m, main profile size 204x120x4mm), QYBT ( span from 15m to 30m, main profile size 256x121x5mm), and QYTH( span from 20m to 40m, main profile size 300x125x5/8mm).

The TFS curved roof tent series are modular structures. We can increase or decrease in the bay distance of 5m according to the clients’ requirement. The main frameworks (upright support and roof beam) are manufactured with high pressed extruded anodized aluminum (6061/T6) and the double-sided PVC roof covers use PVC-coated polyester textile. The flame retardance is based on the European standard DIN 4102B1, M2.

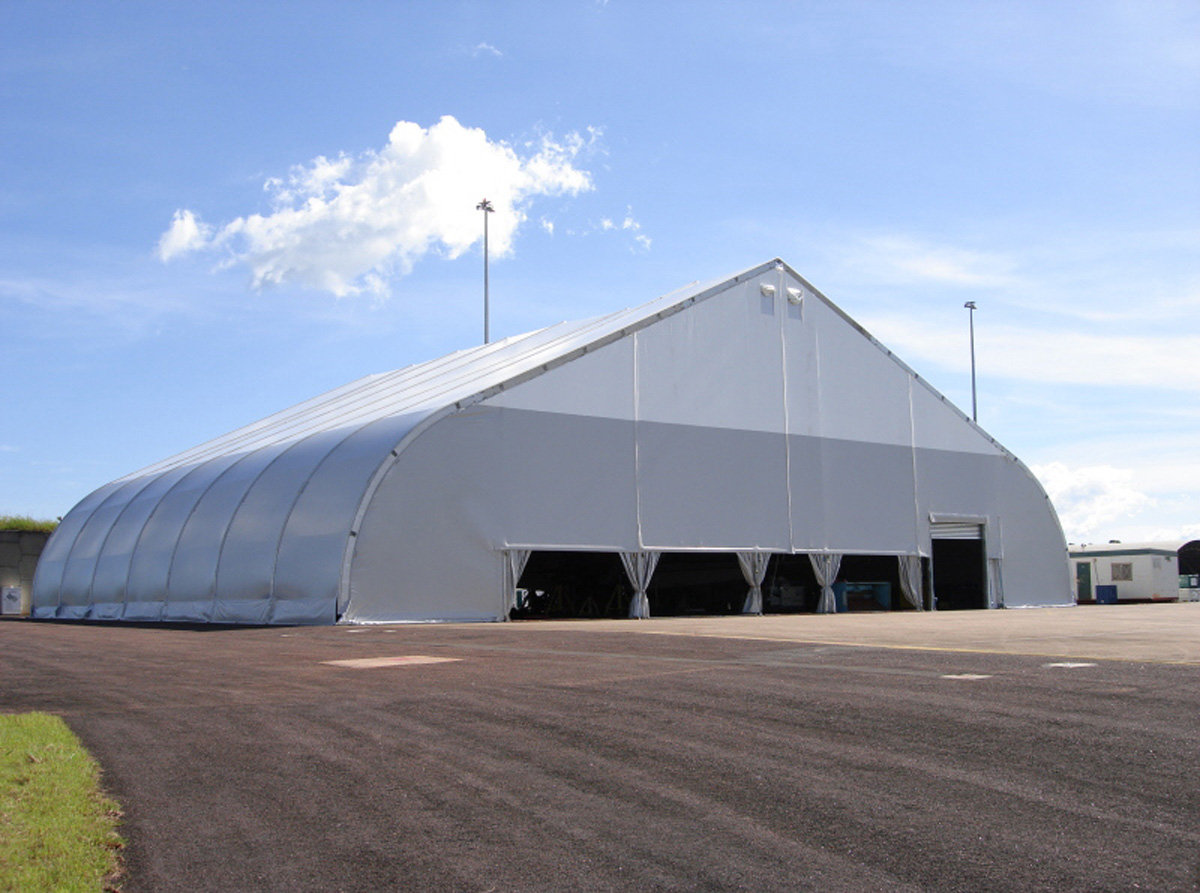

The TFS curved roof tent design is very durable and strong and the wind loading is 100 km/hr. It is convenient and easy to set up and tear down. It is easy to store because of its small volume. This tent has a wide range of applications for the aircraft hangar. Whether you want to construct a temporary or permanent tent both are an excellent choice. This type of structure is superior because of its fast installation, dismantling, and transportation and because of its strength and security. Due to the high beam aluminum alloy curve design and perfectly extended system, it enables the tent to be resistance to high wind and snow.

Features:

◆ Easy to assemble and demount convenient to transport and storage

◆ Elegant and magnificant apperance

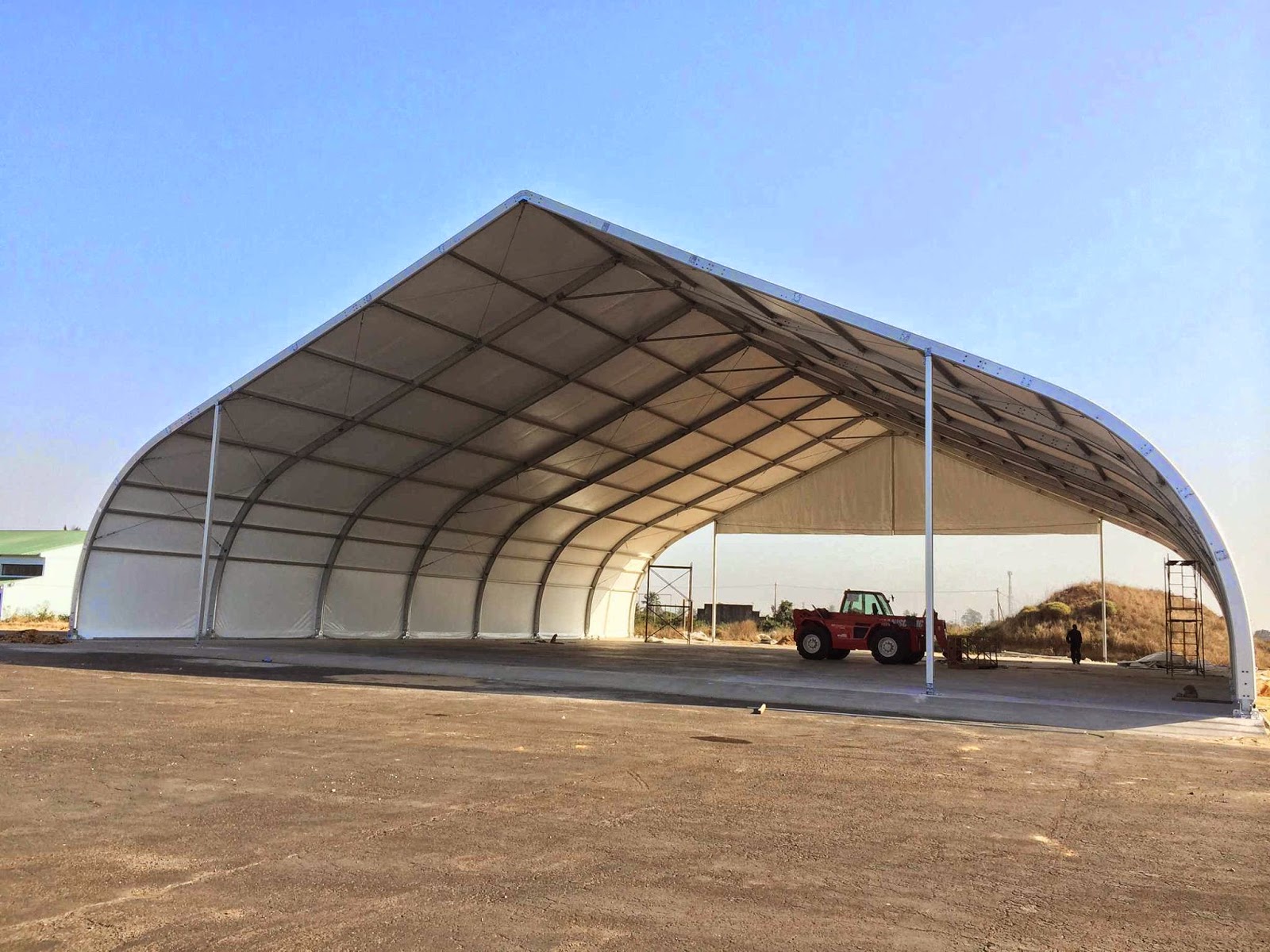

◆ No interior poles structure design to give 100% use of interior space

◆ All aluminum alloy frame and steel frame, both available, windload 80-100km/h

◆ Tarpaulin with double-coated PVC, fire resistant, temperature resistance -30°~+70°

◆ Modular structure, width from 5m~50m, length no limited

◆ Top cover PVC weight is 850gsm, side wall PVC weight is 650gsm

◆ Wide range of application
