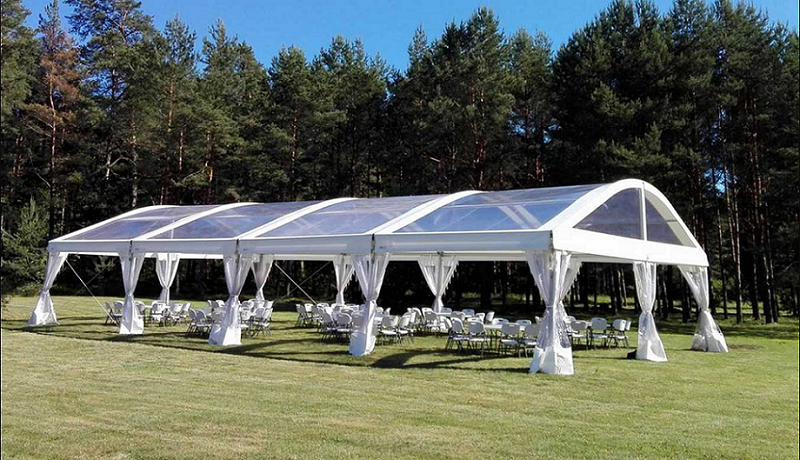

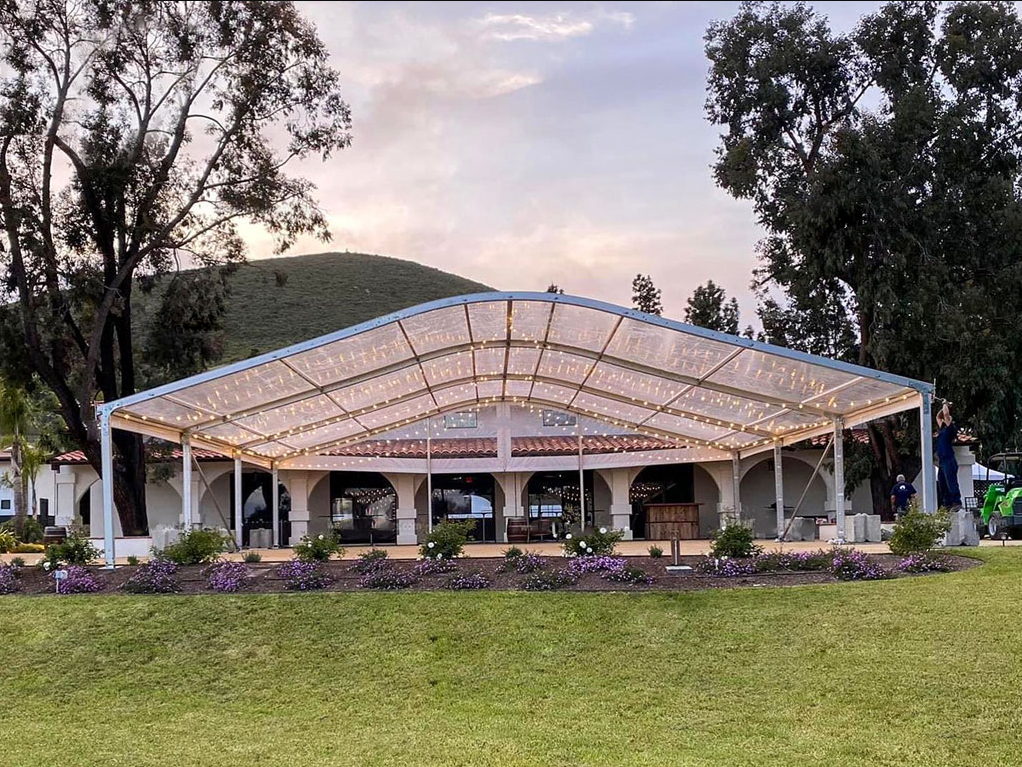

Arcum tent for event&wedding

General Details

Details:

Span width of arcum tent is 8-50m. Bay distance can be increased or decreased in 5m. The main framework is made of hard pressed extruded aluminum alloy (6061/T6) and connector is hot galvanized stainless steel . Flame-retardant double PVC-coated polyester textile is chosen for roof covers and walls, which is strictly conducted in accordance with European DIN4102/B1, M2 quality control standards.

A variety of optional accessories expand the function and usage of Curve Tent. Such as PVC fabric sidewalls with arch clear windows, ground anchors, weight plates, decoration roof linings and side curtains, glass walls, ABS solid walls, steel sandwich walls, corrugated steel sheet walling, glass doors, sliding doors, roller shutters, transparent roof covers and sidewalls, flooring system, hard PVC rain gutters and so on.

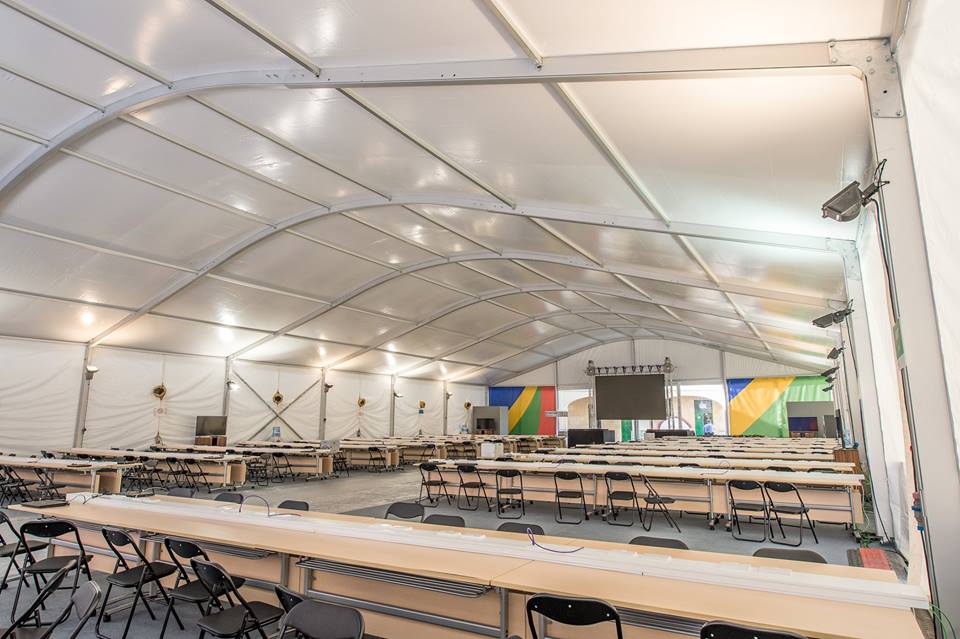

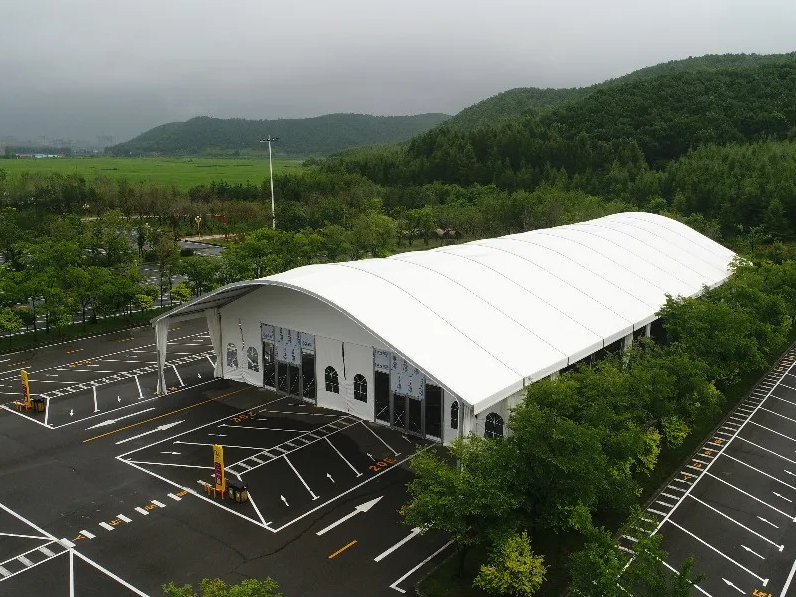

Arcum tent has a strong sense of contemporaneity with its elegant exterior and bigger interior space when it is used for big events and as temporary showrooms.

Features:

◆ Easy to assemble and demount convenient to transport and storage

 Elegant and magnificant apperance

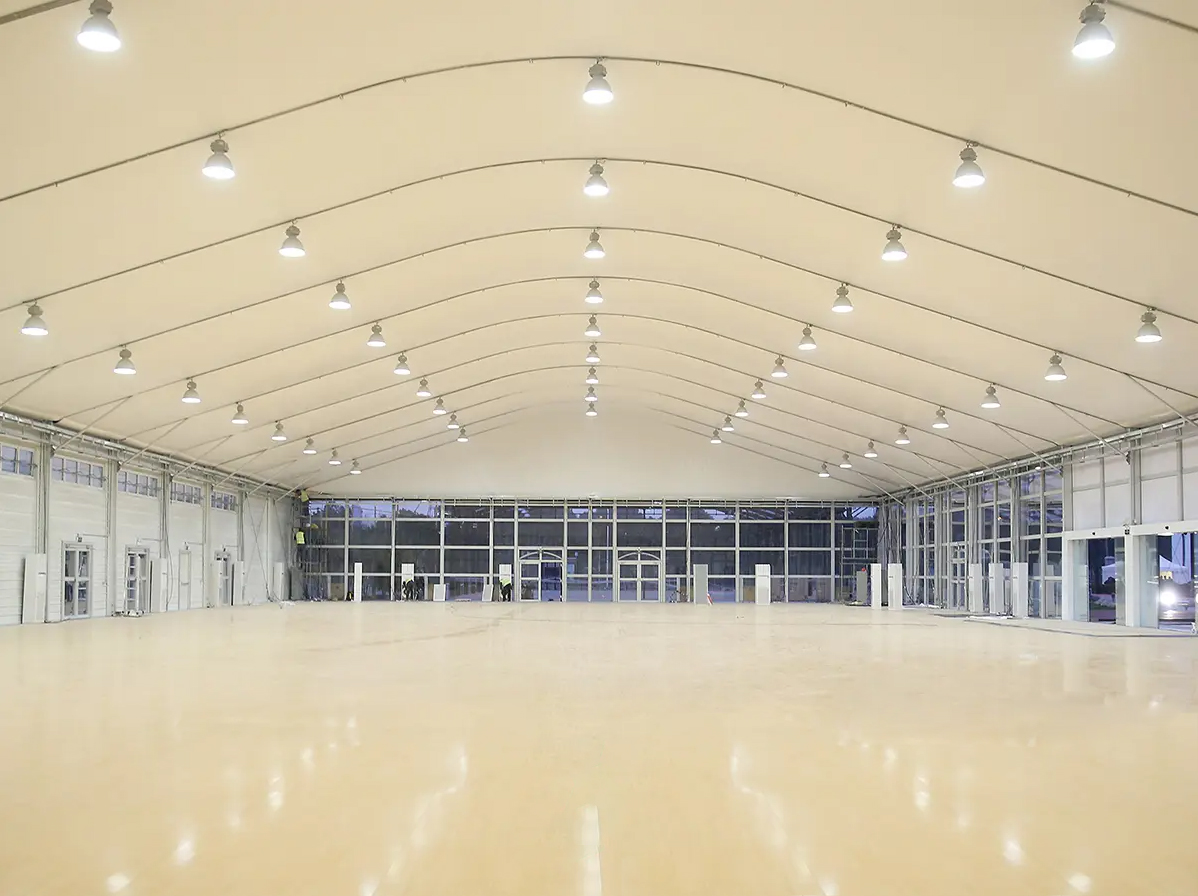

◆ No interior poles structure design to give 100% use of interior space

◆ All aluminum alloy frame and steel frame, both available, windload 80-100km/h

 Tarpaulin with double-coated PVC, fire resistant, temperature resistance -30°~+70°

◆ Modular structure, width from 5m~50m, length no limited

◆ Top cover PVC weight is 850gsm, side wall PVC weight is 650gsm

◆ Wide range of application



Structure
Size


Clear span Width

Eave Height

Bay Distance

Main Profile

Wind Resistant

8m/26ft
3m/9.8ft3m/9.8ft48 x 84 x 3 mm80-100km/h
10m/32ft3m/9.8ft5m/16ft68 x 122 x 3 mm80-100km/h
15m/50ft4m/13ft5m/16ft108 x 150 x 3 mm80-100km/h
20m/65ft4m/13ft5m/16ft112 x 203 x 4 mm
80-100km/h
25m/82ft4m/13ft5m/16ft112 x 252 x 4 mm
80-100km/h
30m/98ft5m/16ft5m/16ft113 x 259 x 5 mm80-100km/h
35m/115ft5m/16ft5m/16ft120 x 300 x 5.5 mm
80-100km/h
40m/130ft6m/19ft5m/16ft125 x 350 x 6 mm80-100km/h
50m/165ft6m/19ft5m/16ft120 x 400 x 7 mm
80-100km/h




Accessories
Application
