General Details
Details:

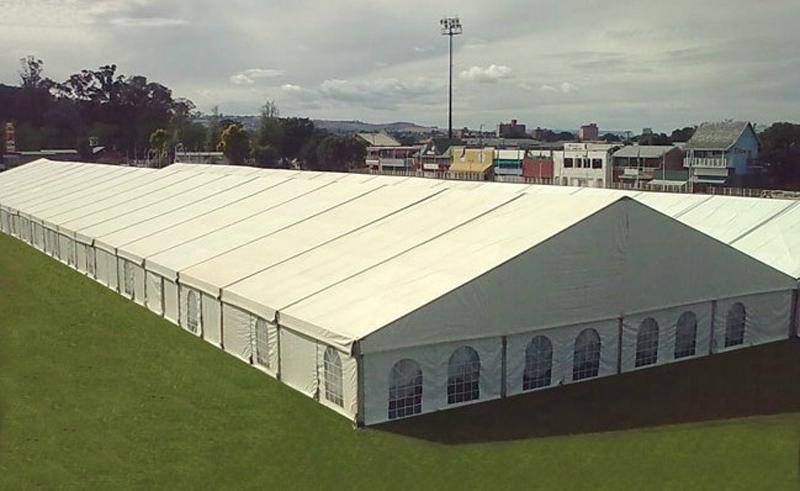

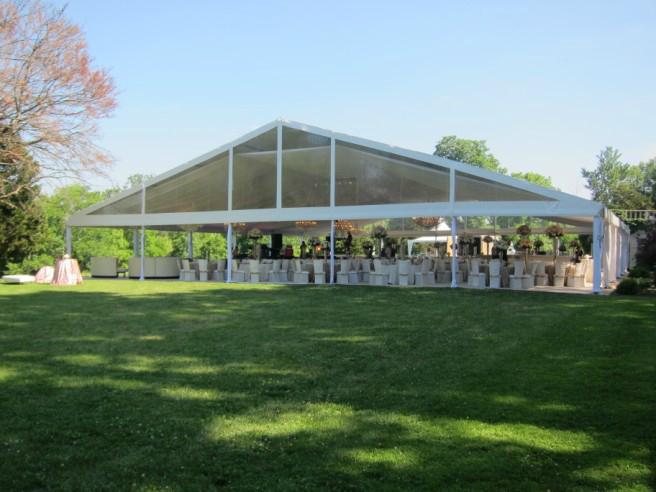

Qiangyu Tent temporary structure tent has many advantages, it is easy to transport and set up, also it is quick to dismantle,and it is more suitable for temporary structure building.
Because there is no any extra pillar inside, the Space utilization rate are 100%, and the flexiable interior is more suiable for outdoor event show and workshop, also the tent is waterproof UV protection, flame retardant and can be hold wind loading 80km/h,it can be use as permanent building in different area.
Qiangyu Tent provided different style industrial tent to meet your market, if you need more help for project, please contact our professional team to give you total solution
Features:
◆ Easy to assemble and demount convenient to transport and storage
◆ Elegant and magnificant apperance
◆ No interior poles structure design to give 100% use of interior space
◆ All aluminum alloy frame and steel frame, both available, windload 80-100km/h
◆ Tarpaulin with double-coated PVC, fire resistant, temperature resistance -30°~+70°
◆ Modular structure, width from 5m~50m, length no limited
◆ Top cover PVC weight is 850gsm, side wall PVC weight is 650gsm
◆ Wide range of application
Structure
Size
| Clear span Width | Eave Height | Top Height | Bay Distance | Main Profile |
| 8m/26ft | 3m/9.8ft | 4.42m/14.5ft | 3m/9.8ft | 48 x 84 x 3 mm |
| 10m/32ft | 3m/9.8ft | 4.58m/15ft | 5m/16ft | 68 x 122 x 3 mm |
| 15m/50ft | 4m/13ft | 6.36m/21ft | 5m/16ft | 108 x 150 x3 mm |
| 20m/65ft | 4m/13ft | 7.15m/23ft | 5m/16ft | 112 x 203 x 4 mm |
| 25m/82ft | 4m/13ft | 7.94m/26ft | 5m/16ft | 112 x 252 x 4 mm |
| 30m/98ft | 5m/16ft | 9.23m/32ft | 5m/16ft | 113 x 259 x 5 mm |
| 35m/115ft | 5m/16ft | 10.52m/34.5ft | 5m/16ft | 120 x 300 x 5.5 mm |
| 40m/130ft | 6m/19ft | 12.31m/40ft | 5m/16ft | 125 x 350 x 6 mm |
| 50m/165ft | 6m/19ft | 13.88m/45.5ft | 5m/16ft | 120 x 400 x 7 mm |
Accessories
Application
Just feel free to contact us,we will try our best to service you.
We manufacture Aluminum structure tent, Steel structure, Tent & membrane for Events, Exhibitions & Sports, Hotel tents and Industry warehouse. Export worldwide.
