20m x 40m Exhibition Event Tent

General Details

Details:

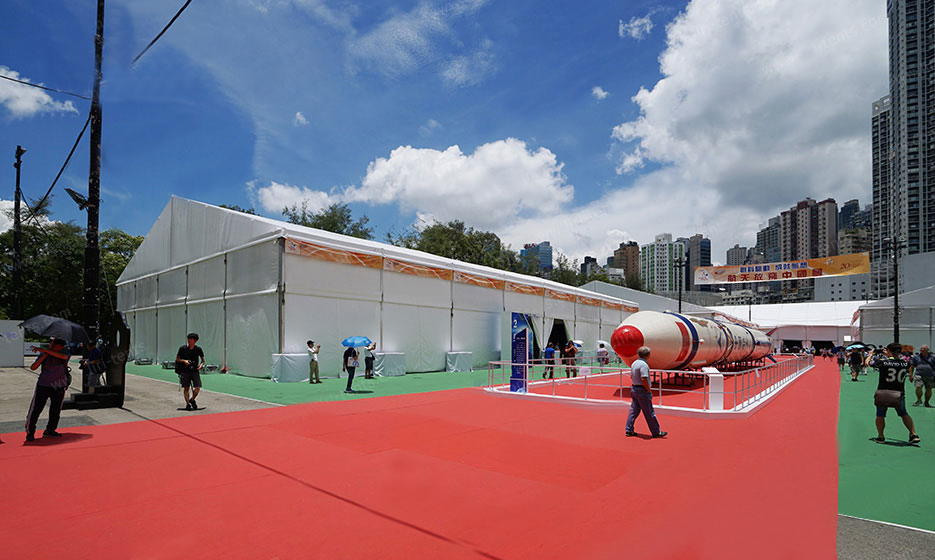

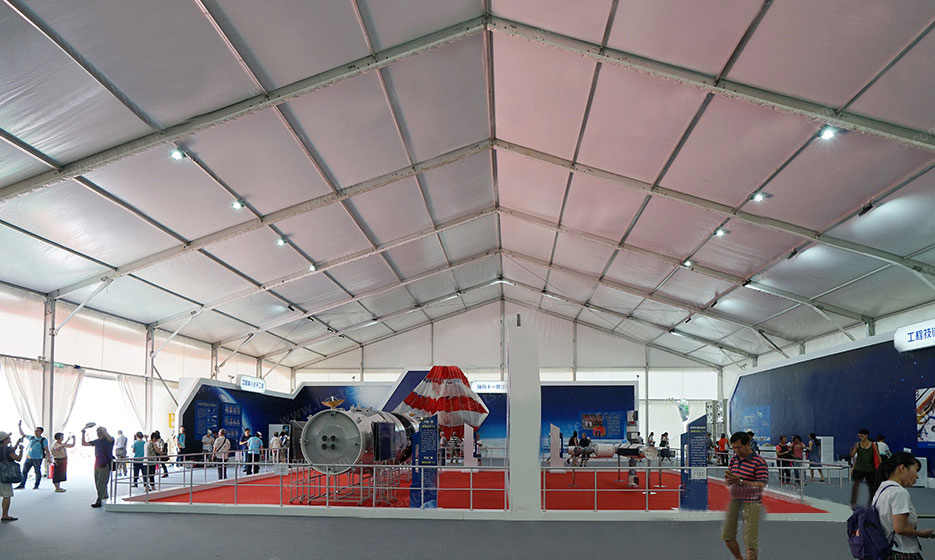

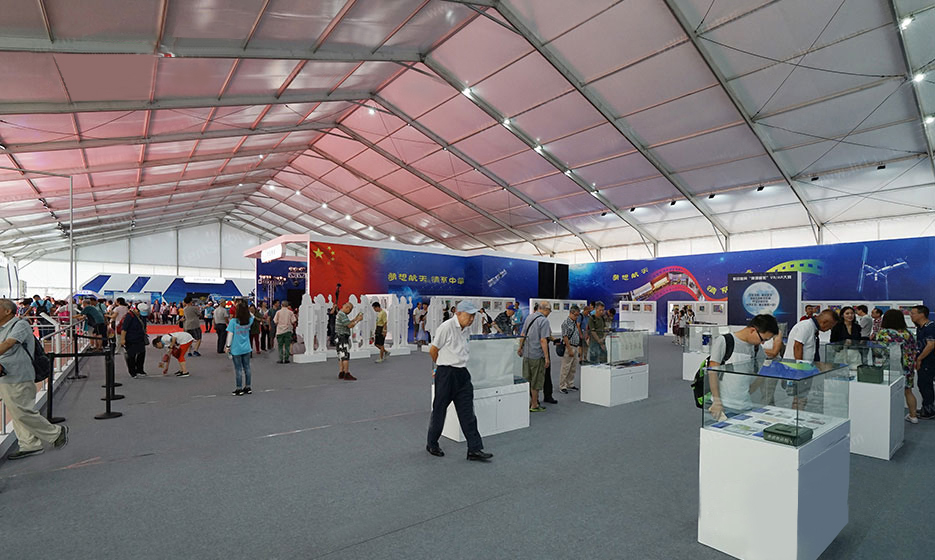

The interior space of the exhibition tents is not obstructed by any beams or columns, making it convenient for exhibitors to layout and arrange their booths. The aluminum exhibition tent features gable covers and sidewall spray advertisements, which can serve as exhibition information advertisements to showcase the theme and atmosphere of the event. We are equipped with a dedicated glass door and window system for exhibition tents, making the entire exhibition center more upscale.


Features:

◆ Easy to assemble and demount convenient to transport and storage

 Elegant and magnificant apperance

◆ No interior poles structure design to give 100% use of interior space

◆ All aluminum alloy frame and steel frame, both available, windload 80-100km/h

 Tarpaulin with double-coated PVC, fire resistant, temperature resistance -30°~+70°

◆ Modular structure, width from 5m~50m, length no limited

◆ Top cover PVC weight is 850gsm, side wall PVC weight is 650gsm

◆ Wide range of application


Structure
Size
Clear span Width
Eave Height
Top Height
Bay Distance
Main Profile
8m/26ft3m/9.8ft4.42m/14.5ft3m/9.8ft48 x 84 x 3 mm
10m/32ft3m/9.8ft4.58m/15ft5m/16ft68 x 122 x 3 mm
15m/50ft4m/13ft6.36m/21ft5m/16ft
108 x 150 x3 mm
20m/65ft4m/13ft7.15m/23ft5m/16ft
112 x 203 x 4 mm
25m/82ft4m/13ft7.94m/26ft5m/16ft
112 x 252 x 4 mm
30m/98ft5m/16ft9.23m/32ft5m/16ft
113 x 259 x 5 mm
35m/115ft5m/16ft10.52m/34.5ft5m/16ft
120 x 300 x 5.5 mm
40m/130ft6m/19ft12.31m/40ft5m/16ft
125 x 350 x 6 mm
50m/165ft6m/19ft13.88m/45.5ft5m/16ft
120 x 400 x 7 mm


Accessories
Application
